12.7mm 1860 Mpa PC Strand
12.7mm 1860 Mpa PC Strand
12.7mm 1860 Mpa PC Strand
12.7mm 1860 Mpa PC Strand
12.7mm 1860 Mpa PC Strand

12.7mm 1860 Mpa PC Strand

Get Latest Price
Payment Type:T/T
Incoterm:FOB,CFR,CIF
Transportation:Ocean
Port:Tianjin Xingang
Product Attributes

BrandChunpeng

StandardAisi, Astm, Bs, Jis

Place Of OriginChina

ApplicationConstruction

Whether AlloyNon-Alloy

Packaging & Delivery
Selling Units : Ton
Package Type : The roll is wrapped in three layers of waterproof packaging, the roll eyes are facing up and two fumigated sleepers are tied to the bottom with steel belts.
Picture Example :

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Chunpeng Group is a leading and professional manufacturer of prestressed concrete (PC) steel materials, with over 30 years of industry experience. We are committed to delivering high-quality products and innovative solutions for infrastructure and construction projects worldwide.

Core Products:

In addition to our PC strand products, Chunpeng Group also supplies:

  • Prestressed Anchorage Systems
    Precision-engineered dead end and live end anchorages, wedges, and anchor heads to ensure safe and efficient load transfer in post-tensioning systems.
  • Photovoltaic Mounting Systems
    Durable and customizable mounting solutions for solar energy applications, designed to meet the demands of various environments and installation types.

With strict quality control, advanced manufacturing technologies, and global certifications, Chunpeng Group is a trusted partner for contractors, engineers, and project developers in bridge construction, high-rise buildings, tunnels, precast concrete, and renewable energy sectors.


Let me know if you'd like this localized for a specific market or tailored for use in email outreach or marketing materials.

PC Strand is mainly for the use of pre-stressed concrete structure reinforced, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring Project, multi-story industrial buildings, stadiums, coal mines and etc.

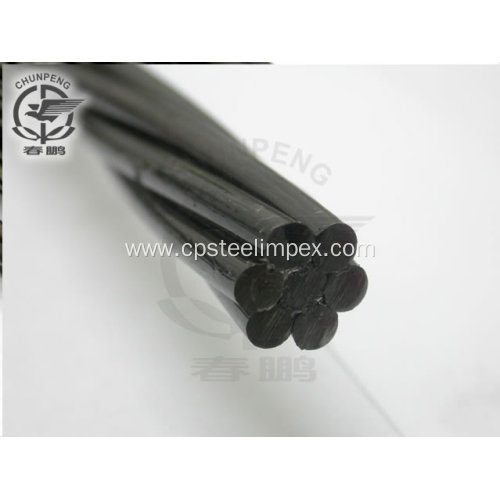

1x7 12.7mm 1860 Mpa PC Strand is seven-wire, uncoated steel strand for use in pretensioned and

post-tensioned prestressed concrete construction.

Diameter of Strand, mm[in.]

Tolerance of Dia. mm

Minimum Breaking Strength of Strand

kN [lbf]

Steel Area of Strand

mm2 [in.2]

Weight of Strand kg/1000m [lb/1000 ft]

Min Load at 1% Extension

 kN [lbf]

Low-Relaxation

Minimum Difference Between Center Wire Diameter and Diameter of Any Outer Wire,

mm [in.]

Grade 1725 [250]

12.7 [0.500]



160.1 [36 000]

92.9 [0.144]

730 [490]

144.1 [32 400]

0.076 [0.003]

Grade 1860 [270]

12.70 [0.500]



183.7 [41 300]

98.7 [0.153]

775 [520]

165.3 [37 170]

0.0762 [0.003]



Feature: Low relaxation, High Tensile Strength, Straight,

1) Construction: 7 wires

2) Standards: ASTM A416/A416M

3) Packaging:

Inner Diameter: 760mm

Outside Diameter:1400mm Max

Coil’s width: 760mm

Coil’s Weight: 2500~3500 kg

We use vapors corrosion inhibiting technology on export anti-rust packing. Outside of the coil has 3 wraps. There are two wooden pallets on the bottom of the coil. The coil is eye to sky in the container.

4) Inquiry please provide: Diameter, Grade of strand, Type of Strand, Quantity and ASTM year of issue.

5) Month productivity for Strand: 10 000 tons.

6) 20’ container: 20,000~25,000 kg.

7) Raw material: We have stable wire rod suppliers such as Shougang Group, Xingtai Iron company, Tianjin Iron company. There are thousands of wire rod in our warehouse to ensure production.



 1x7 12.7mm 1860 Mpa PC Strand is seven-wire, uncoated steel strand for use in pretensioned and

post-tensioned prestressed concrete construction.
